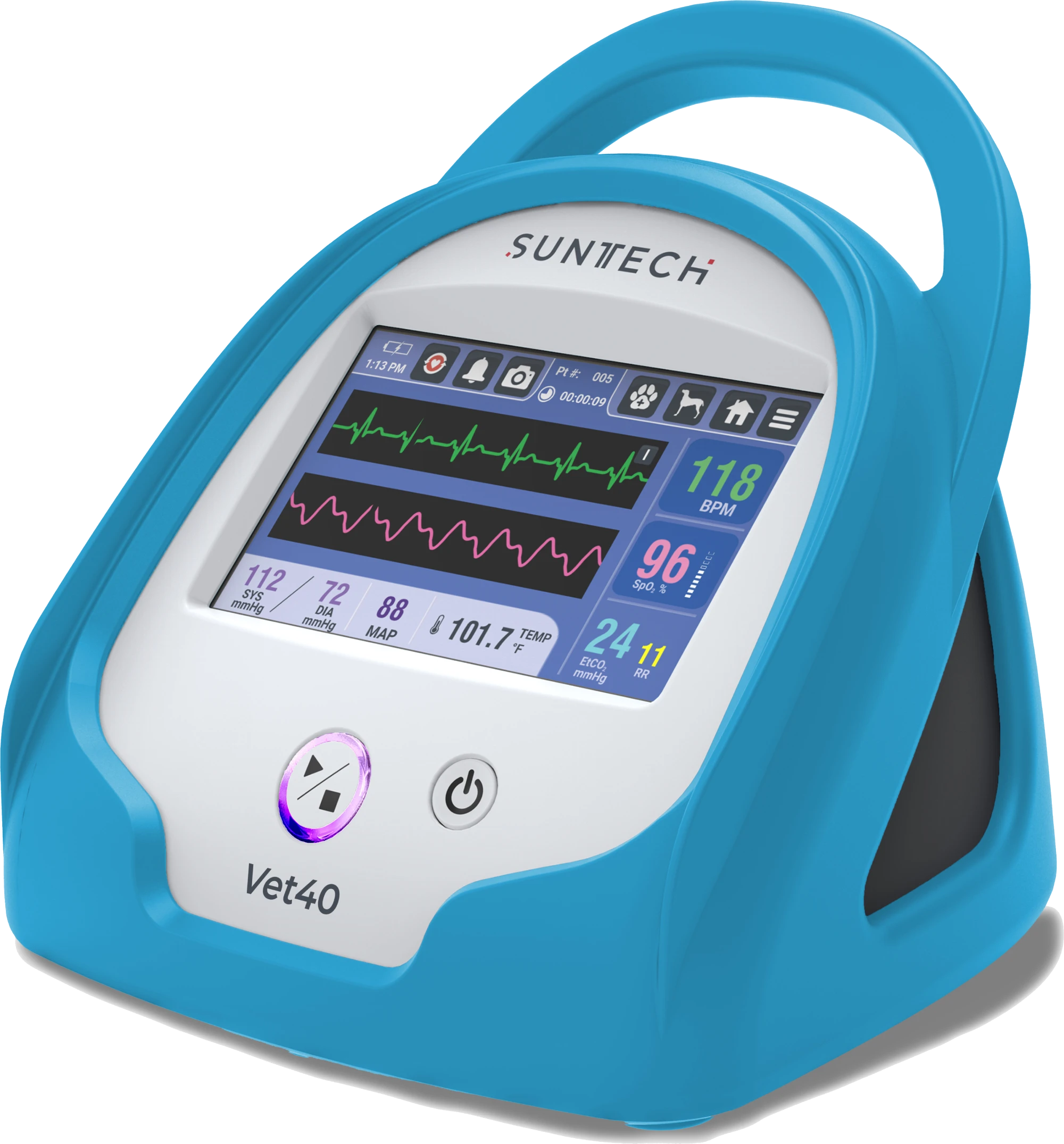

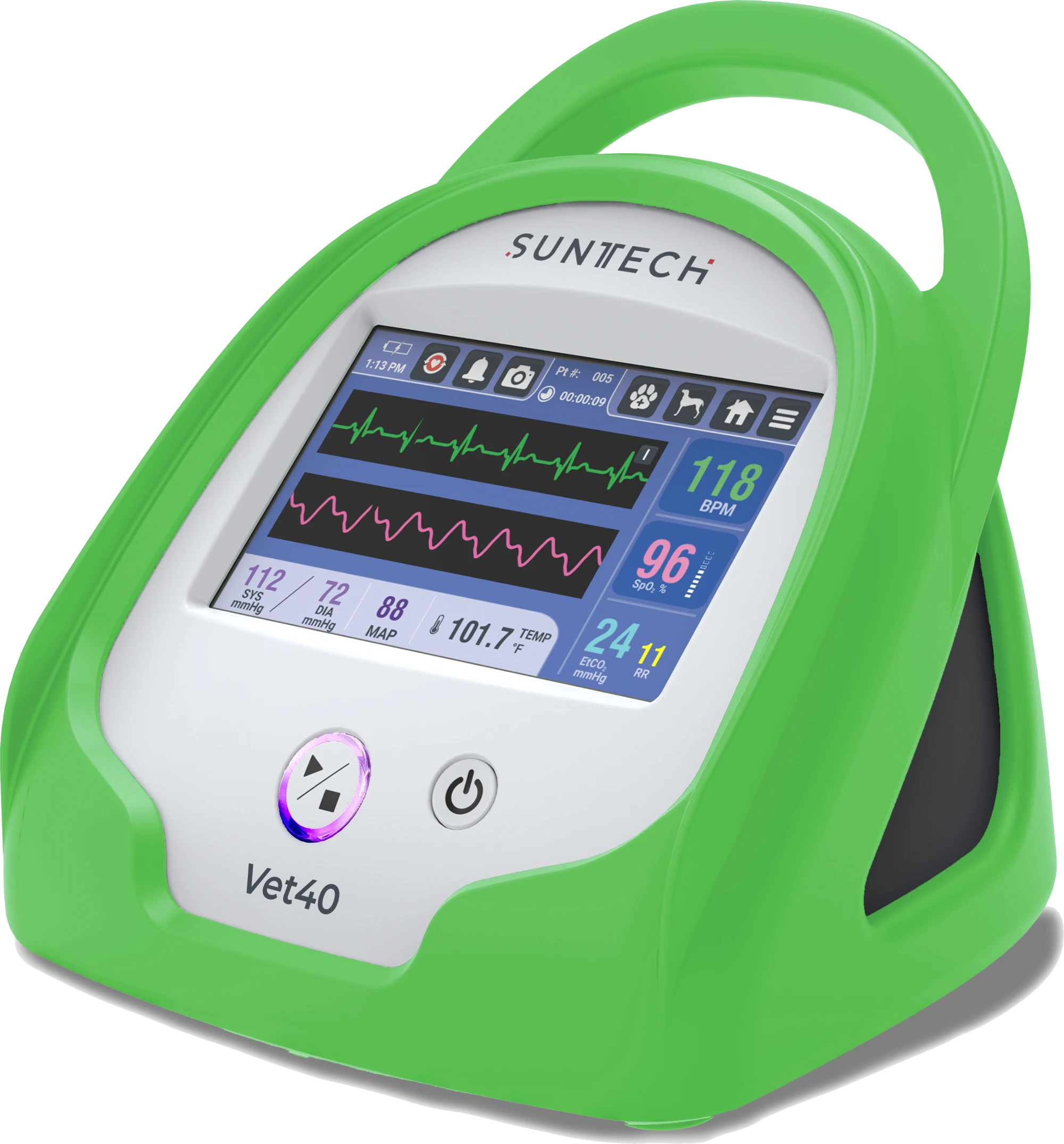

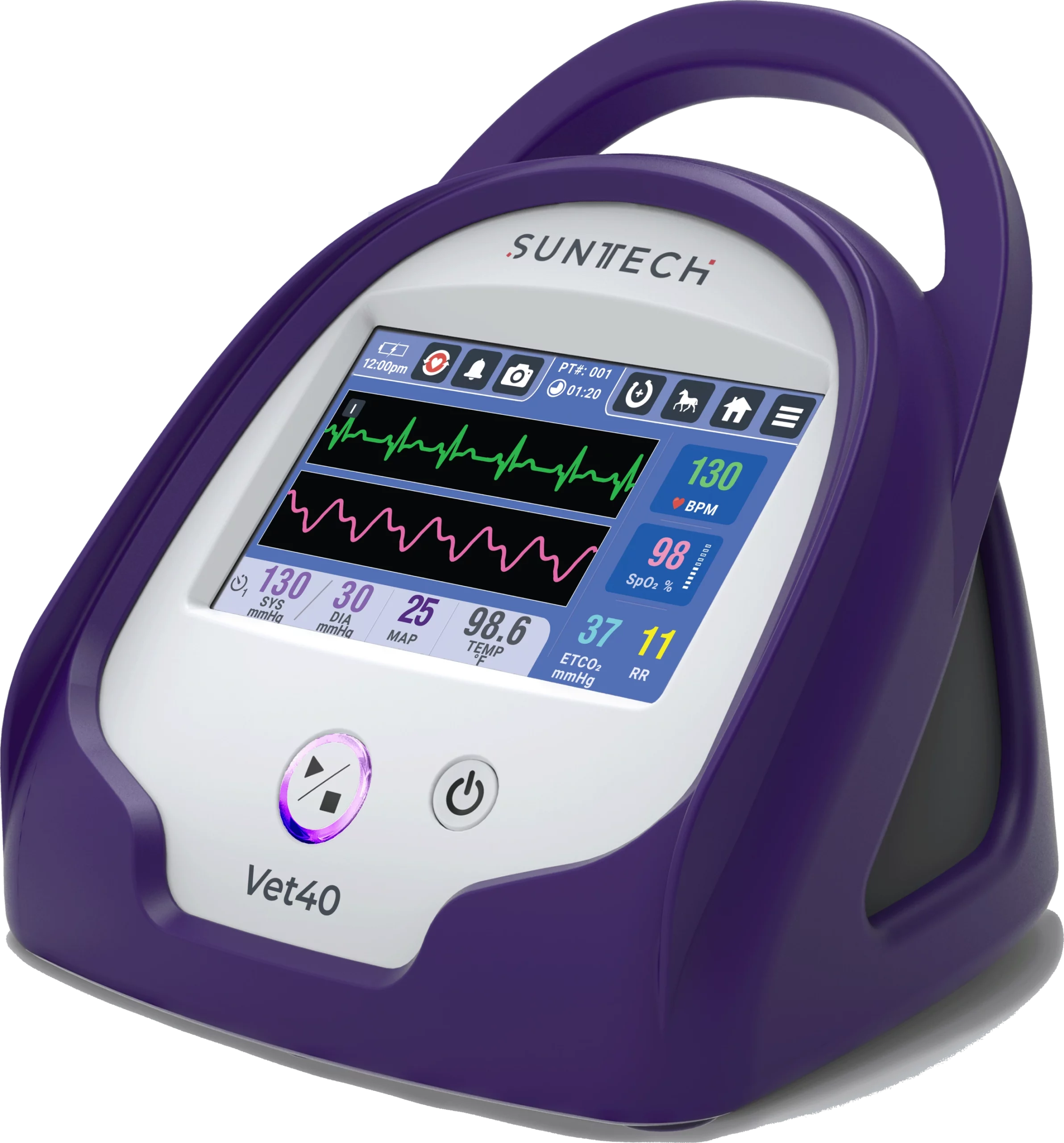

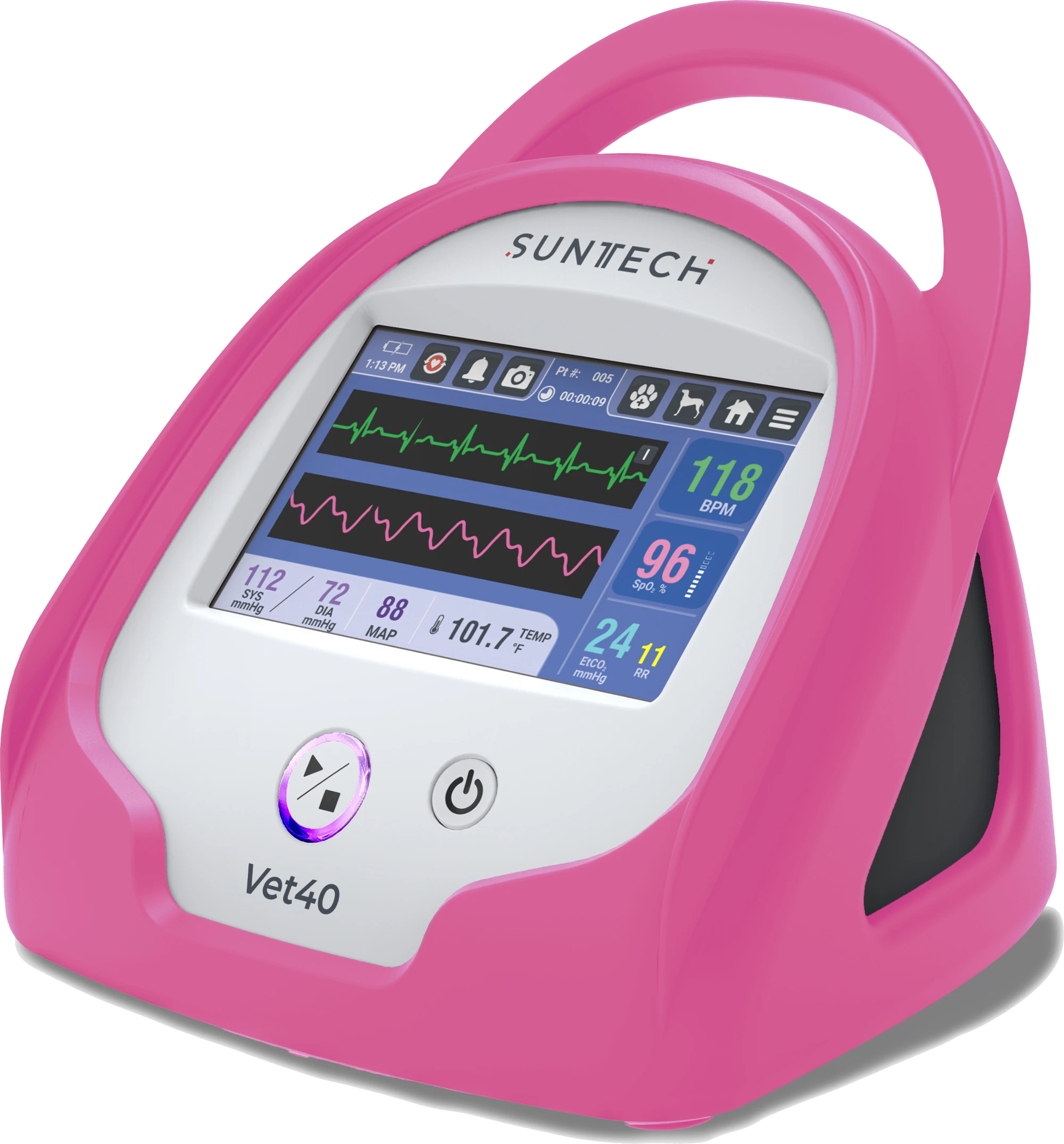

SunTech Vet40 Veterinary Monitor

Portable Multiparameter Monitoring for Veterinary Procedures and Critical Care

The Vet40 is a multiparameter veterinary vital signs monitor developed for clinical environments where comprehensive monitoring is required. It extends SunTech’s motion‑tolerant blood pressure technology with integrated ECG, EtCO₂, pulse oximetry (SpO₂), and temperature measurement, supporting procedural monitoring, anesthesia, and critical care.
The intuitive touchscreen interface, customizable alarms, and Bluetooth connectivity support efficient setup, continuous monitoring, and streamlined data review and reporting across the clinic.

  • Non-invasive blood pressure (NIBP)
  • Heart rate
  • Oxygen saturation (SpO₂)
  • Temperature
  • 3-Lead ECG
  • EtCO2 with capnography
  • Respiratory Rate
  • Motion-tolerant blood pressure technology for fewer missed readings
  • Blood pressure trending and averaging
  • Continuous temperature monitoring
  • Choice of AccuVet or Masimo SET® pulse oximetry technology with plethysmograph and signal strength indicator
  • Integrated ECG monitoring with waveform display
  • Capnography (EtCO₂) monitoring for respiratory assessment during procedures
  • Customizable visual and audible alarms for monitored parameters
  • Portable, rechargeable battery design with AC power capability
  • Intuitive touchscreen
  • Data and waveform transfer to PC software with PDF/CSV export
  • External display support via HDMI connection
  • Bluetooth connectivity enables remote monitoring
  • Memory retains trend data for review and reporting
  • Vet40 system monitor
  • Protective armor
  • Veterinary blood pressure cuffs, sizes 1–6
  • 6 ft patient hose (1.8 m)
  • AccuVet™ temperature probe
  • ECG lead set
  • SpO₂ lingual sensor with clips (Masimo or AccuVet, depending on configuration)
  • SpO₂ reflectance or transreflectance sensor options (species and configuration dependent)
  • Capnography sensor and sampling accessories (configuration dependent)
  • AC adapter
  • Standard 2‑year monitor warranty

Configure Your Monitor

Quantity

Clinical Applications

Designed to support comprehensive monitoring across diverse clinical workflows, with a portable system that adapts easily throughout the veterinary practice.

Surgical suites

Dental suites

Critical care monitoring

Emergency and resuscitation support

Pre‑ and post‑operative monitoring

Sedated procedures

Imaging environments (CT and radiology)

Your SunTech BP Advantage

  • Motion‑tolerant technology reduces missed blood pressure readings
  • Quiet operation designed for noise-sensitive patients
  • Animal‑specific algorithm supports accurate readings, even with movement
  • Intuitive touchscreen interface for fast, simple operation
  • Portable design for use across multiple exam, procedure, and recovery rooms
  • Memory supports trending and data review for clinical decision‑making

Technical Specifications

Refer to the User Manual for full specifications.
Monitor Specifications
  • Measurement Method: Oscillometric non‑invasive blood pressure (NIBP)
  • Pulse Rate Range: 25–300 bpm
  • Display: Touchscreen
  • Power: Rechargeable lithium‑ion battery with AC adapter
  • Data Export: Bluetooth
  • Systolic: 40–265 mmHg
  • Diastolic: 20–200 mmHg
  • MAP: 27–222 mmHg
  • Accuracy: ±3 mmHg (0–300 mmHg)
  • Species: Vet40 – Canine/Feline, Vet40E – Canine, Feline, Equine
  • Temperature Range: 26oC to 46oC
  • Measurement Mode: Direct
  • Transient Measurement Time: 45 seconds
  • SpO₂ Range: 0-99%
  • SpO₂ Accuracy: +/-2% at 70%-90%; <70% unspecified
  • Pulse Rate Range: 18-400 BPM
  • SpO₂ Averaging Time: 8 pulse beat average
  • SpO₂ Range: 0-100%
  • SpO₂ Accuracy: +/-2% at 70%-100%, for patients weighing >30kg; Undefined, for patients weighing <30kg
  • Pulse Rate Range: 25-240 BPM
  • SpO₂ Averaging Time: 8 second averaging
  • Configuration: 3-lead
  • Lead Selection: I, II, III, user selectable
  • Maximum number of simultaneous ECG Waveforms: One
  • Defibrillation protection: Yes
  • HR Range: 12-420 bpm
  • Initialization Time: To display: 8 sec; to specification: 2 min
  • Respiration range: 1 to 150 Breaths/min
  • Calibration: Initial zero calibration only
  • Initialization Time: To display: 45 sec; to specification: 2 min
  • Respiration Range: 1 to 150 Breaths/min
  • Calibration: Self-calibration

Resources & Downloads

Access product documentation and support materials

Software Downloads

Vet40 Firmware Update

Make sure your Vet40 is updated with the latest firmware

Vet40 Stream App

Bluetooth remote monitoring app

Vet40 Fetch App

Data Transfer App

Documentation

Product Brochure

PDF • 690 KB
Download

Vet40 User Manual

PDF • 4 MB
Download
